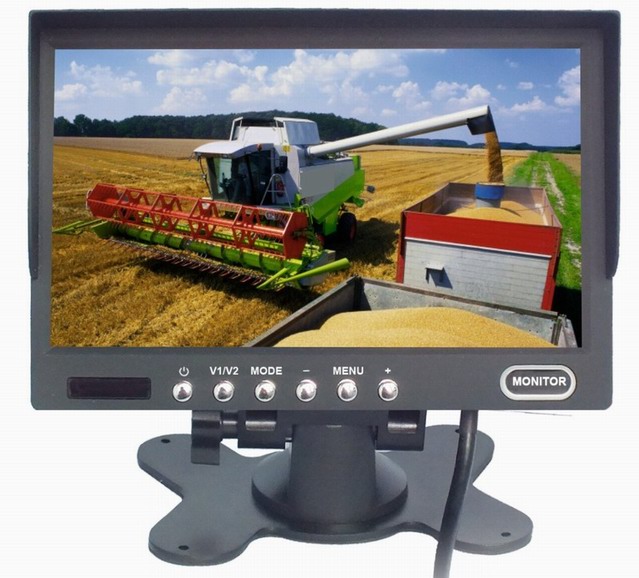

Model number: AS-703

Screen Ratio

7″high digital new panel ,16:9image

Back Light

LED300cd/㎡ （400cd/㎡,optional)

Resolution

800xRGBx480

Compatible system

NTSC & PAL (automatically)

OSD control

Color, Brightness, Contrast, Volume, Language

(English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese)

View angle

Hor. L(70) R(70   Ver. UP(50) DOWN(70)

Image reversion

UP/Down and Left/Right

Power requirement

9V-32DC

Power consumption

5W

Storage temperature

-30℃〜80℃

Working temperature

-20℃ to 70℃

Size

172x115x22 mm

Exterior color

Black rubber oiling

AV Inputs

2 way video input,（2 way audio input，Optional）

Number of Trigger

and display

1 trigger

Monitor And Camera Connector

RCA/ 4pin connector (Optional)

Accessories

Remote controller, Power supply cable , User manual, Bracket,
